Product Introduction

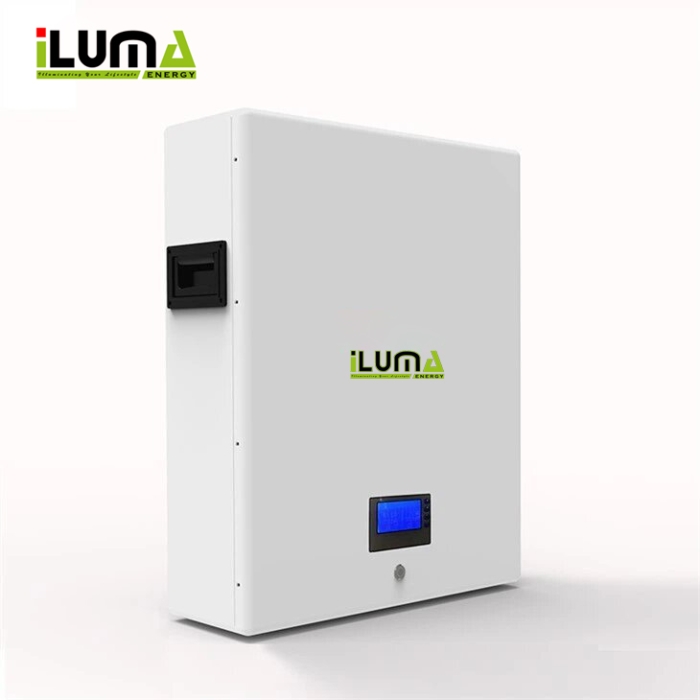

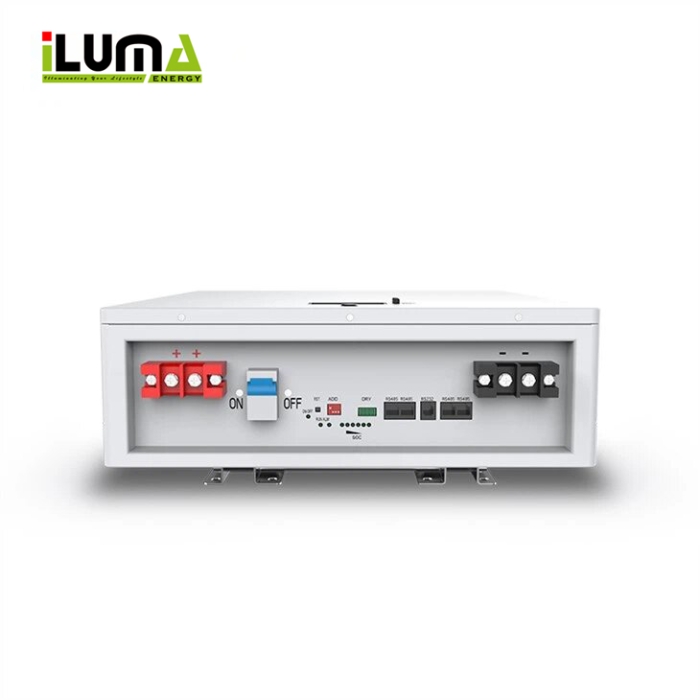

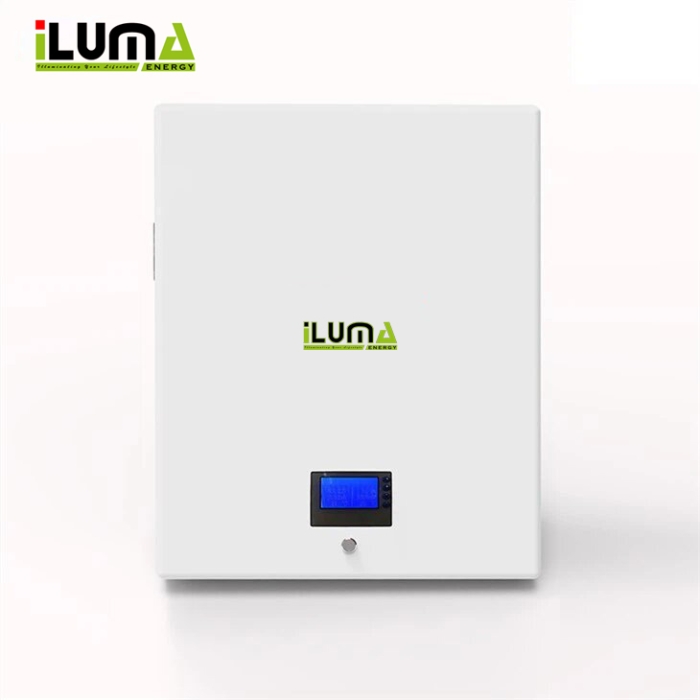

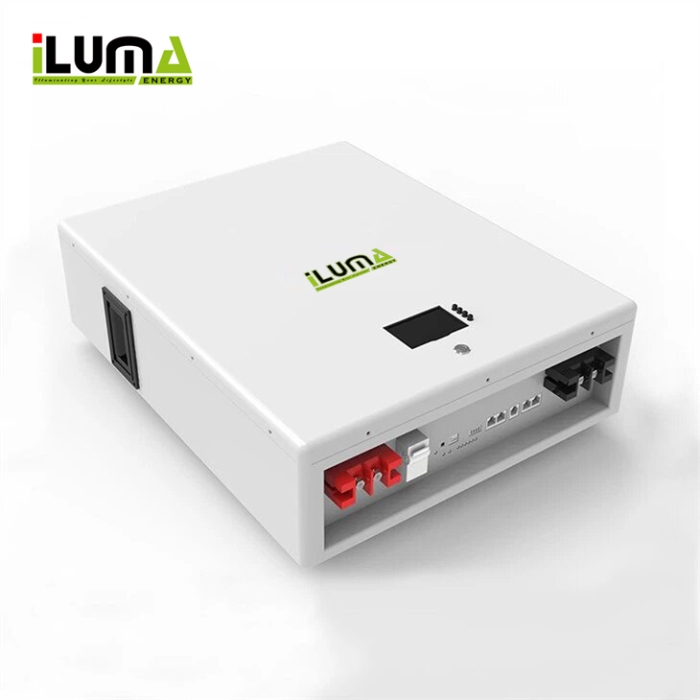

Key Features Of 5KW Solar Powered Backup Battery

▲ Lightweight and Easy to Install.
ILUMA solar-powered backup battery is plug-and-play, has no memory effect, and is easy to move and use. The ideal for backup power for solar system home energy storage.

▲ Safer.
LiFePO4 batteries are used in general solar photostatic without thermal runaway issues. They are safe enough to be installed indoors and are the perfect solution for mobile living and entertainment. No hazardous gas release, no negative health or environmental hazards.

▲ Smarter BMS with RS485/CAN/RS232
LiFePO4 cells--a state-of-the-art high-performance battery management system (BMS) provides short circuit, overcharge and over-discharge protection while maintaining voltage balance across all cells.

▲ Superior Cycle Life.
The battery has a cycle life of more than 4,000 times at 25°C, with a service life of ten years, and the usable capacity is almost 100%. Lead-acid batteries can't reach it.

▲ All-in-one Configuration, Flexible Design
The energy storage machine can be equipped with 5KW inverter, solar charger, 10KW lithium iron phosphate battery cabinet combination according to customer needs.

▲ Multiple Charging Methods
It can charge by photovoltaic or grid, and both can even charge at the same time; a variety of different power sources use for charging, and electrical appliances could be powered by solar energy/grid/battery.

▲ Higher Capacity
A flexible parallel connection increases the capacity to 200Ah, allows providing 10KW power, and supports maximum electricity of 20kwh for your use.

▲ Smart Display
Clearly display PV energy, battery power status, output and input status, and load operating parameters.

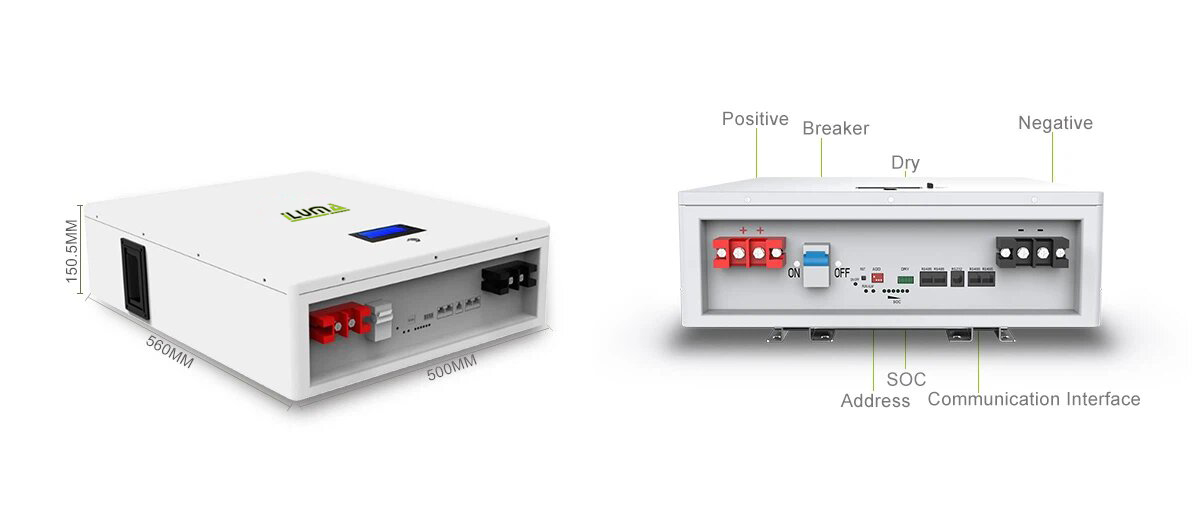

Battery details

Product model	48100	48200
Dimensions (LWH)	500560150.5mm	450680227.5mm
Weight	45kg	80kg
Rated capacity	100Ah	200Ah
Rated voltage	51.2V
Working voltage	40~58.4V
Battery type	LFP
Communication interfaces	CAN/RS232/RS485
Constant charging current	100A
Constant discharging current	100A
Peak charging current	110A (3S)
Peak discharging current	110A (3S)
Max. Number of parallel	16
IP	IP54
Charging temperature range	0~60℃
Discharging temperature range	-20~60℃
Cooling method	Natural cooling
Display	LCD

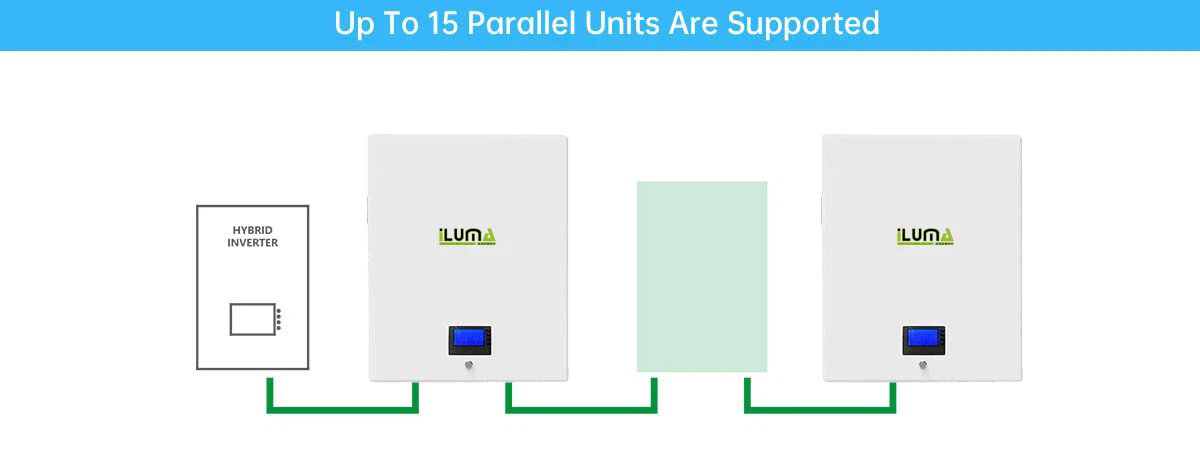

Products in parallel

Safer And Smart

Why ILUMA Battery Is Safer

Why ILUMA Battery Is Smarter

ILUMA Bttery, Safer And Smarter, Illuminating Your Lifestyle!

Your Best Supplier for 5KW solar Powered Backup Battery

● Global Project Experience
We have project experience in more than 40 countries. Solar system batteries are one of our important areas. We can design a battery solution for you for free if you have an idea.

● Strong Scientific Research Team
We have excellent R&D teams from CATL, EVE, BYD and OptimumNano, who have an average of more than 20 years of experience in the lithium-ion battery industry. It can help you successfully fulfill your imaginative needs.

● Top Smart Technology
We can develop a Pro-BMS for you. Provide more accurate data to realize your real-time monitoring of the battery. The product has Bluetooth function, you can customize Bluetooth for you, or you can use our special Bluetooth interface.

● High Quality Cell
We use the world's top batteries such as CATL, EVE, BYD and cylindrical 32700, brand-new A-level batteries, to ensure the quality and safety of batteries from the most important core components.

● Product Traceability
The production quality system is very perfect, and each ILUMA battery has a unique label to ensure the traceability of the product.

● Reliable Warranty
It can be extended to 5 years, long-term technical guidance.

TOP ILUMA R&D Team

With 20 years experience on average

With specially-appointed professors as the backbone,

ILUMA R&D team continuously committed to technological innovation.

main Production Process of LiFePO4 Battery

With a perfect safety production management system, to achieve close monitoring of product quality,

effectively improve our work efficiency, reliable quality management system can protect your interests.

The officially certified 5KW Solar Powered Battery makes you more trustworthy.

Widely Compatible Inverters

Application

5 kW solar system is unique because compact structure minimizes the size, powered by lithium batteries and ultra-high voltage efficient panels. You are installing this system on a roof; you probably don't need a grid connection.
This solar battery pack can run all the devices in the home like multiple lights up to 500 watts, many ceiling fans, 8-10 units, and household and kitchen appliances like TV, refrigerator, water motor, geyser, grinder, juicer machine, etc. 5000 watts.
This is a completely off-grid system where customers can go to the grid to disconnect. And it is equipped with latest technology products, lithium battery, super-efficient shark panel, high-rise structure and monitoring data on laptop using LAN cable. Widely used in solar energy systems for both residential and commercial use. Over 4000 deep cycles, up to 100% DOD and phosphate batteries.
Provide you with a maintenance-free system to make your life more convenient.

Customer Review

ILUMA battery, safer and smarter, Illuminating Your Lifestyle.

Always highly reviewed by customers all over the world.

FAQ

(1) Is 5KW Enough to Run a House?
Yes. A 5KW system is enough to make a household independent from the grid, supplying sufficient energy to operation.

(2) Do Solar Panels Work with Moonlight?
Yes, solar panels do technically work with moonlight. But it mainly uses the sun.

(3) Rain Clean Sol Will are Panels?
Solar panels do not need cleaning, but not cleaning them can reduce some efficiency. Rain will wash away some of the buildup on the panels, but manual cleaning is more effective.

(4) How Long Will a 5kW Solar Battery Last?
If you typically run common household appliances such as a few lights, a refrigerator, and a TV, a 5kW battery should last about 10 hours.

(5) How Do I Calculate Battery Size?
You can calculate the battery size for inverters using the formula B = P × t / Vdc, where B is the battery capacity in Ah, P is the inverter's rated power, t is the duration of power supply in hours, and Vdc is the DC voltage of the inverter.
