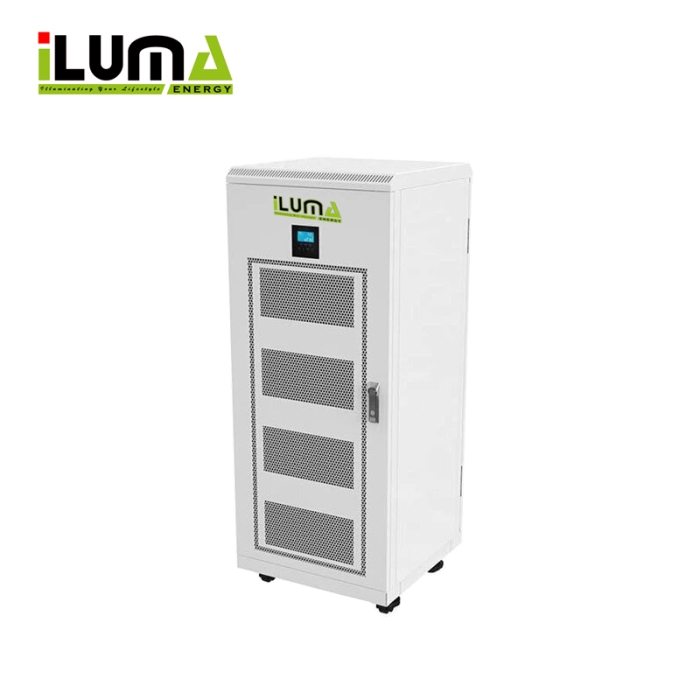

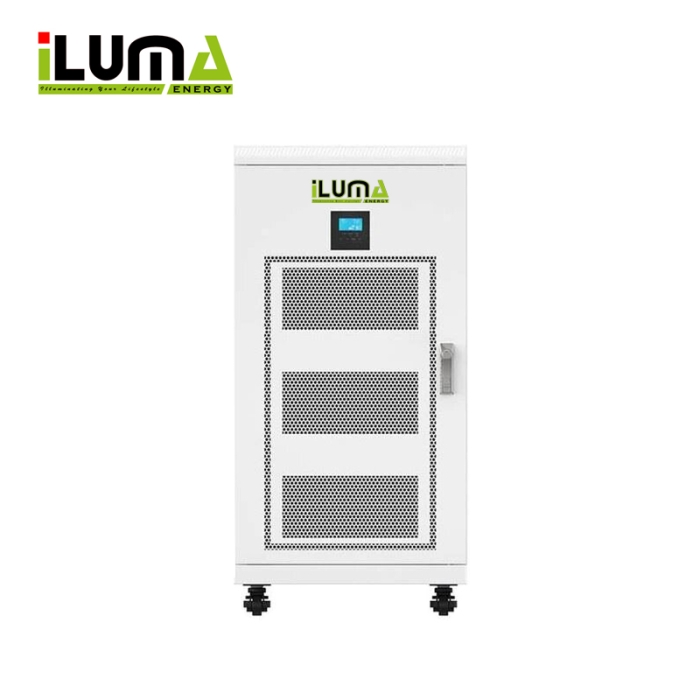

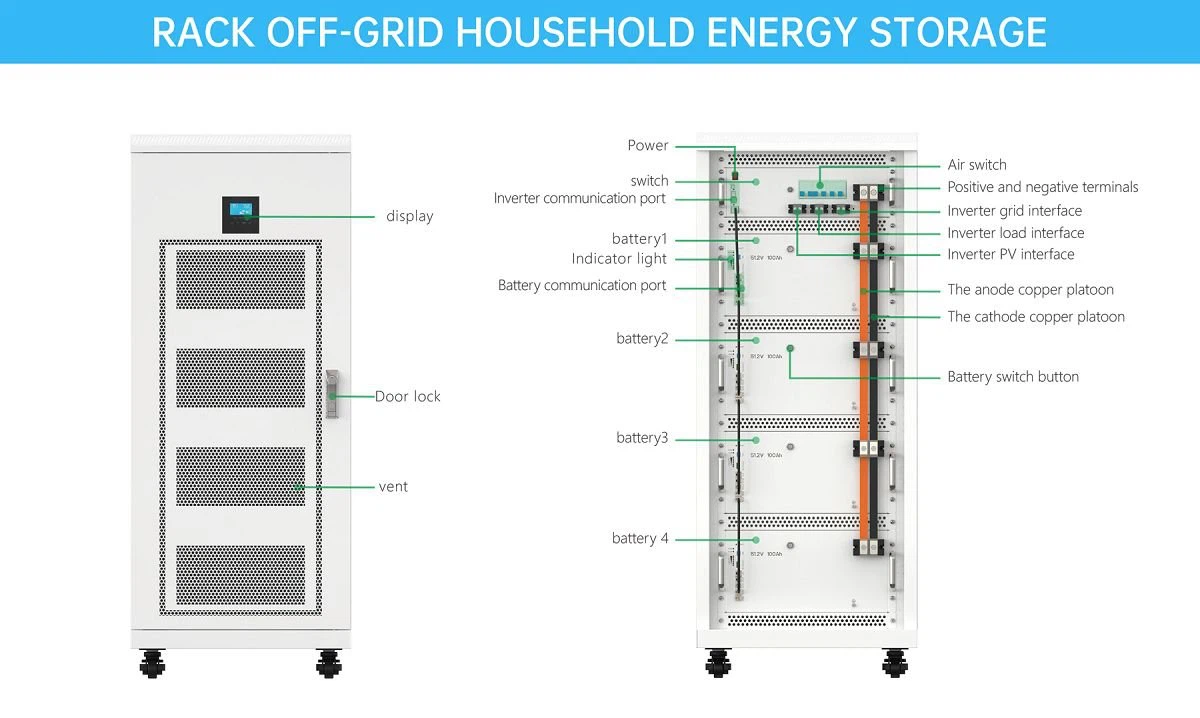

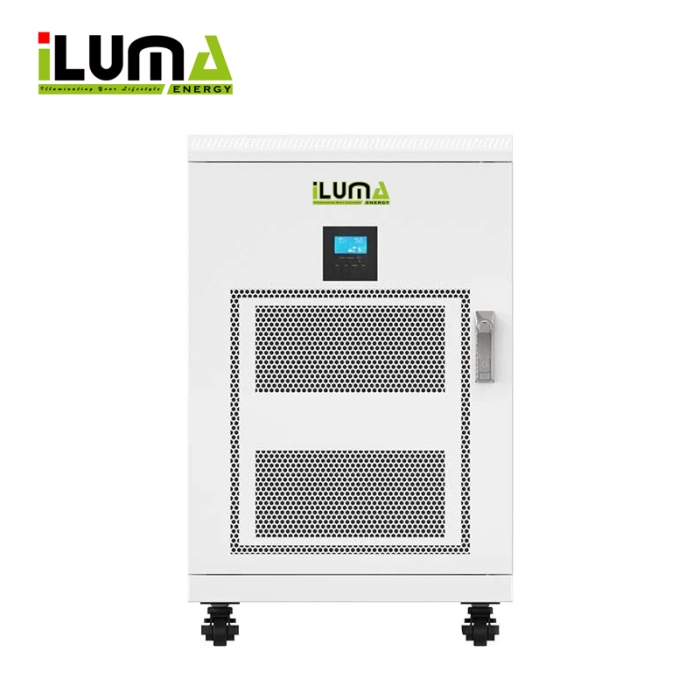

Product Introduction

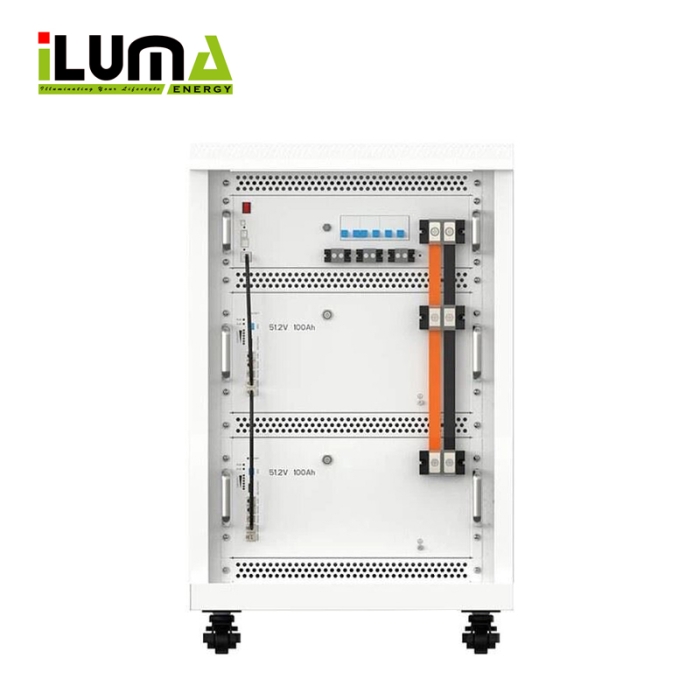

Key Features Of 10KW Battery Storage System for Home
♦ With Standard Chassis Design
Using professional modular design, strict and standardized production, with strong versatility, convenient installation, simple operation, and maintenance advantages.
♦ Ultra Long Service Life
The high-end brand lithium iron phosphate cell, such as EVE, CATL, with low internal resistance and high rate. Higher safety, more than 4000 cycle life at room temperature, longer service life.
♦ Safer and Smarter
The intelligent system can reduce the loss, improve the energy conversion efficiency, have higher stability, and run safely and smartly.
♦ Build-in Pro BMS and Communication Functions
The use of three-level BMS system management avoids the cell imbalance and the overcharge and over discharge caused by it to the greatest extent, and can also realize the whole process monitoring and management of the system.
♦ Support Parallel and Multiple Inverters
This battery can support up to 15 parallel applications, which can meet the use of larger capacity, while supporting CAN2.0, RS485 and RS232 communication protocols. Matching multiple inverters is also one of the biggest advantages of this battery.
♦ Environmental Protection and Safety
LiFePO4 is harmless and has no pollution, no harmful gas, and no explosion. ILUMA LiFePO4 is the best choice for reliable, safe, and environmental energy solutions.
|
System Parameter
|
|
System capacity
|
10.4kwh
|
15.6kwh
|
20.8kwh
|
|
Number of parallel batteries
|
2
|
3
|
4
|
|
Battery pack capacity
|
200Ah
|
300Ah
|
400Ah
|
|
Weight
|
180kg
|
230kg
|
280kg
|
|
Measure
|
600*600*860mm
|
600*600*1130mm
|
600*600*1400mm
|
|
Maximum input power
|
5kw
|
|
Maximum output power
|
5kw
|
|
Battery type
|
Lithium iron phosphate
|
|
Protection grades
|
IP40
|
|
Life
|
≥4000cycle
|
|
Battery Parameters
|
|
Rated voltage of battery
|
51.2V
|
Peak discharge current
|
110A
|
|
Working voltage of battery
|
40~58.4V
|
Cooling mode
|
Natural cooling
|
|
Communication interface
|
CAN/RS232/RS485
|
Waterproof grade
|
IP40
|
|
Continuous charging current
|
100A
|
Charging temperature
|
0~60℃
|
|
Continuous discharge current
|
100A
|
Discharge temperature
|
-20~60℃
|
|
Peak charging current
|
110A
|
Humidity of working environment
|
10%-90%RH
|
|
Adapt Inverter Parameters
|
MPPT Parameters
|
|
Maximum charging power
|
5KW
|
Maximum PV open circuit voltage
|
145VDC
|
|
Maximum output power
|
5KW
|
PV operating voltage range
|
60~145VDC
|
|
DC input voltage range
|
40~60V
|
MPPT voltage range
|
60~145VDC
|
|
DC output voltage range
|
40~58V
|
Maximum output power
|
4200W
|
|
Number of phase
|
monophase
|
Solar charging current
|
0~80A
|
|
Rated AC input
|
220A
|
|
Rated AC output voltage
|
220A
|
|
Rated frequency
|
50/60Hz
|
safer And Smart
Why ILUMA Battery Is Safer
Why ILUMA Battery Is Smarter
ILUMA Bttery, Safer And Smarter, Illuminating Your Lifestyle!
Your Best Supplier for 10KW Battery Storage System For Home
★ Rich Experience in Energy Storage Systems
ILUMA focuses on designing more intelligent energy storage systems. Technical team combines weather changes, solar energy production, and energy consumption data to customize your battery. Multiple smart designs to continuously improve energy efficiency and battery performance.
★ Strong Team Strength
ILUMA's R&D team is from BYD, CATL and EVE. Starting with technical consultation, engineers plan, design, and install energy storage system for you.
★ Strictly Control the Quality
The factory strictly controls the production and inspection process to ensure stable battery performance. We provide you with the safest battery pack. Our products have passed the inspection in quality and performance indicators. ILUMA 10kWh solar wall-mounted lithium battery adopts a 18650 lithium iron phosphate battery. The entire internal assembly is screw-fastened, making your energy storage battery stronger and more durable.
★ Professional Certification
The products have passed CE, IEC, UN38.8, UL and other related certifications.
★ Scientific Customization
As one of the top lithium-ion battery manufacturers, ILUMA can customize batteries of different specifications (voltage: 12~48V; capacity: 50Ah ~ 600ah). Increase the number of inverters, batteries, and solar panels to enable larger energy storage systems. Provide homeowners and businesses with renewable electricity.
TOP ILUMA R&D Team
With 20 years experience on average
With specially-appointed professors as the backbone,
ILUMA R&D team continuously committed to technological innovation.

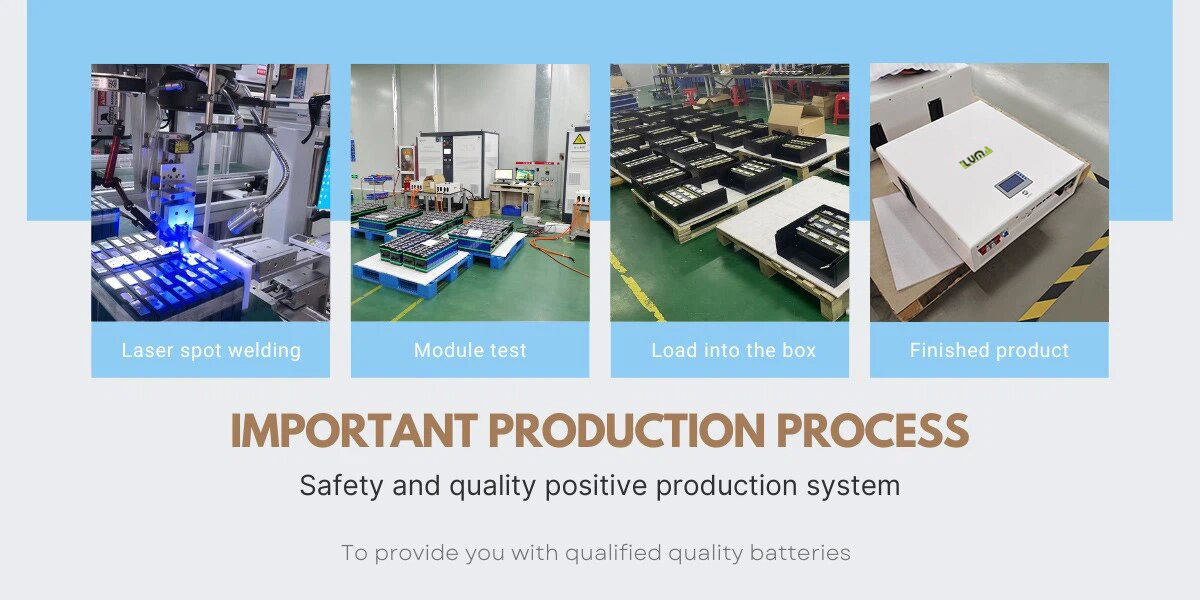

main Production Process of LiFePO4 Battery
With a perfect safety production management system, to achieve close monitoring of product quality,
effectively improve our work efficiency, reliable quality management system can protect your interests.
The officially certified 10KW battery storage system makes you more trustworthy.
Widely Compatible Inverters
Application
ILUMA 10KWH battery energy system can reduce your dependence on the power grid. Our lithium-ion solar cell is perfect to improve the independence of household electricity. Excess power will be stored and made available when needed!
Reduce your electricity costs by using a 10kWh residential battery system to avoid buying electricity when electricity prices are soaring.
ILUMA 10KWH is an intelligent emergency battery energy storage system. Reduce the troubles and losses caused by sudden power outages.
Lithium iron phosphate battery is renewable green energy. ILUMA 10KWH provides clean and sustainable energy for your home energy storage.
Flexible configuration. Depending on the module size, the storage capacity increases to 20 kWh or more!
ILUMA 10 kW adopts intelligent and safe technology to maximize battery life and safety. Deep cycle and maintenance free, further reducing your electricity costs.
The lightweight design facilitates flexible installation. The housing material is waterproof and dustproof, and the battery pack operates from –20°C to 50°C (–4°F to 122°F), making it the perfect home energy storage solution.
Customer Review
ILUMA battery, safer and smarter, Illuminating Your Lifestyle.
Always highly reviewed by customers all over the world.
FAQ
(1). How Long Can a 10kw Battery Power a House?
In general, during a power outage, the average household consumes 750W to 1,000W per hour, and a 10kWh battery will last 10 to 12 hours.
(2). Do Solar Panels Work during a Power Outage?
No, for technical and safety reasons, the solar system will not provide power during a power outage. Solar panels are designed to absorb sunlight and convert it into electricity.
(3). Can Household Electricity be Run on a Solar System alone?
Modern solar systems help us with electricity storage, and you can
run your entire house electricity entirely on solar power. Solar power is the cheapest way to power an entire home.
(4). Can Solar Panels Work even on Rainy Days?
Solar panels also absorb reflected light in the rain but produce less electricity. Rain is also good for solar panels, and you can get a free panel cleaning service.
(5). Is 10kW Enough to Run a House?
It depends on where you live. A 10kW solar system can power an average family of four. A 10kW solar power system produces an average of 40kW per day and can run residential appliances for more than 5 bedrooms, including all lights, TVs, laptops, refrigerators, washing machines, and central air conditioners.
(6). What Devices Can a 10kW Battery Power?
For example, 33 hours for a 300W TV; 50 hours for a 200W refrigerator; 50 hours for five 20W bulbs;25W phone charger for 400 hours; or a 6W WiFi router for 1,600 hours. A system capable of running 8 LED lights, 8 fans, 2 tons of AC (2 refrigerators, 1 washing machine, 1 cooler)
